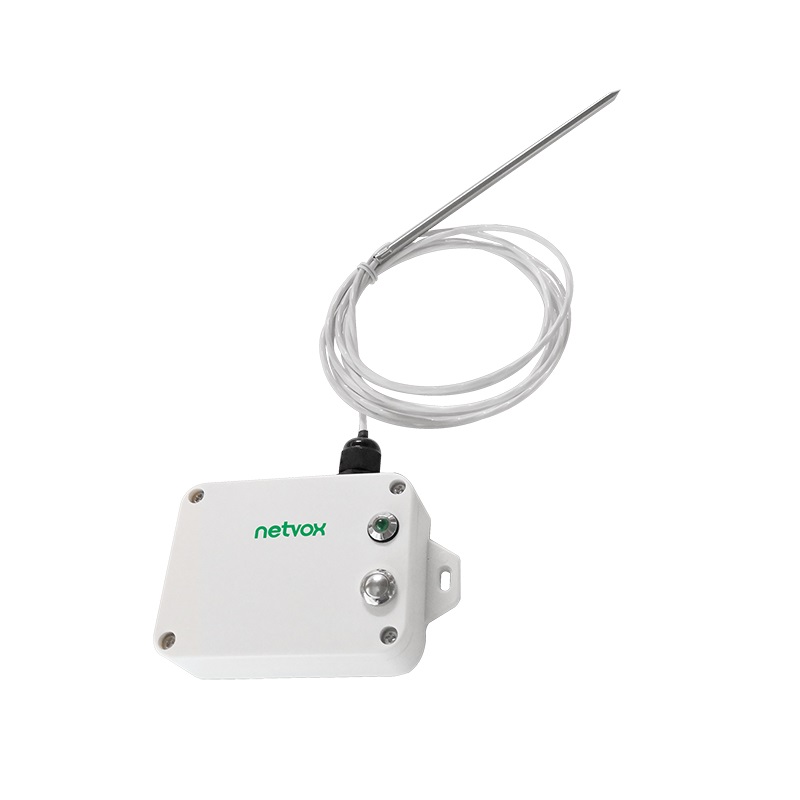

R718B Wireless Resistance Temperature Detector

R718B Wireless Resistance Temperature Detector​

The R718B connects an external resistance temperature detector (PT1000) to measure the temperature.

Resources​

Specifications​

LoRaWAN device type:​

  • Class A end-device

Sensors:​

  • temperature
  • battery

Dimensions:​

** Main device:

  • width: 88.19 mm
  • length: 112 mm
  • height: 32 mm

** L-type probe:

  • diameter: 5 mm
  • length: 100 + 60 mm

** Needle probe:

  • diameter: 5 mm
  • length: 150 mm

** Round head probe (PT1000):

  • diameter: 5 mm
  • length: 30 mm

Weight:​

  • 141 grams

Battery:​

  • type: 2x ER14505 Lithium AA battery / 3.6 V / 2400 mAh per battery
  • replaceable: True

Note:​

  • The base is attached to a magnet that can be attached to a ferromagnetic material object.
  • Alerts can be set via SMS text and email (optional).
  • This detector can be chosen with 3 types of probes: round head probe (PT1000), needle probe and L-type probe.
  • All probes are made of 316 stainless steel.
  • Lead length: 2 m
