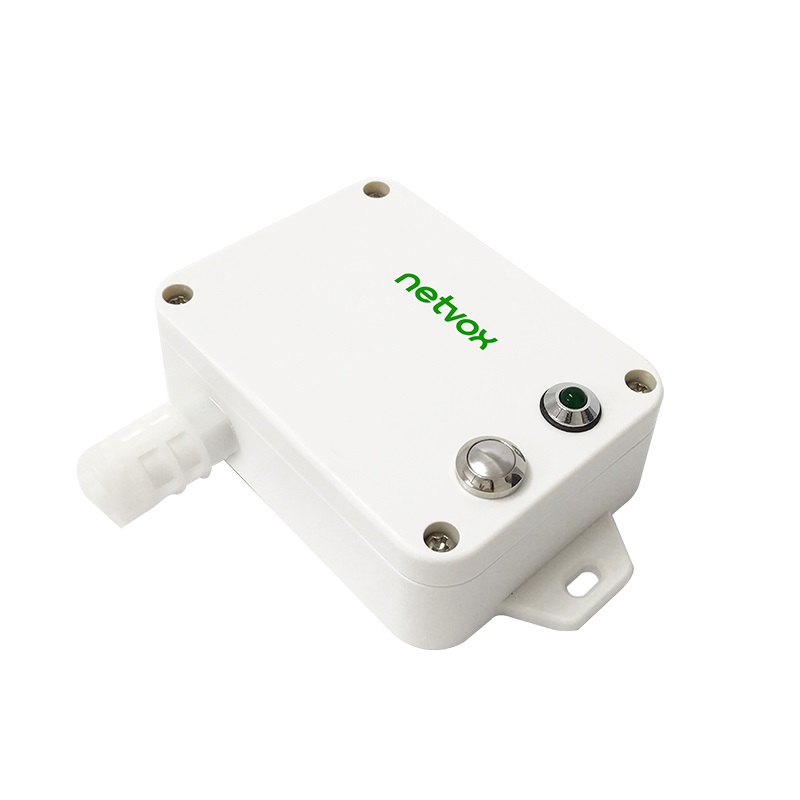

R718AB Wireless Temperature and Humidity Sensor

R718AB Wireless Temperature and Humidity Sensor​

The R718AB is a wireless communication device that detects ambient air temperature and humidity. The R718AB can detect the temperature and humidity of the air and transmit the detected data to a data center through the wireless network.

Resources​

Specifications​

LoRaWAN device type:​

  • Class A end-device

Sensors:​

  • ambient temperature
  • humidity
  • battery

Dimensions:​

** Main device:

  • width: 65 mm
  • length: 112 mm
  • height: 32 mm

** Sensor cover:

  • diameter: 16 mm
  • length: 27 mm

Weight:​

  • 141 grams

Battery:​

  • type: 2x ER14505 Lithium AA battery / 3.6 V / 2400 mAh per battery
  • replaceable: True

Note:​

  • The base is attached to a magnet that can be attached to a ferromagnetic material object.
  • Alerts can be set via SMS text and email (optional).
