DL-WRM-001
DL-WRM-001

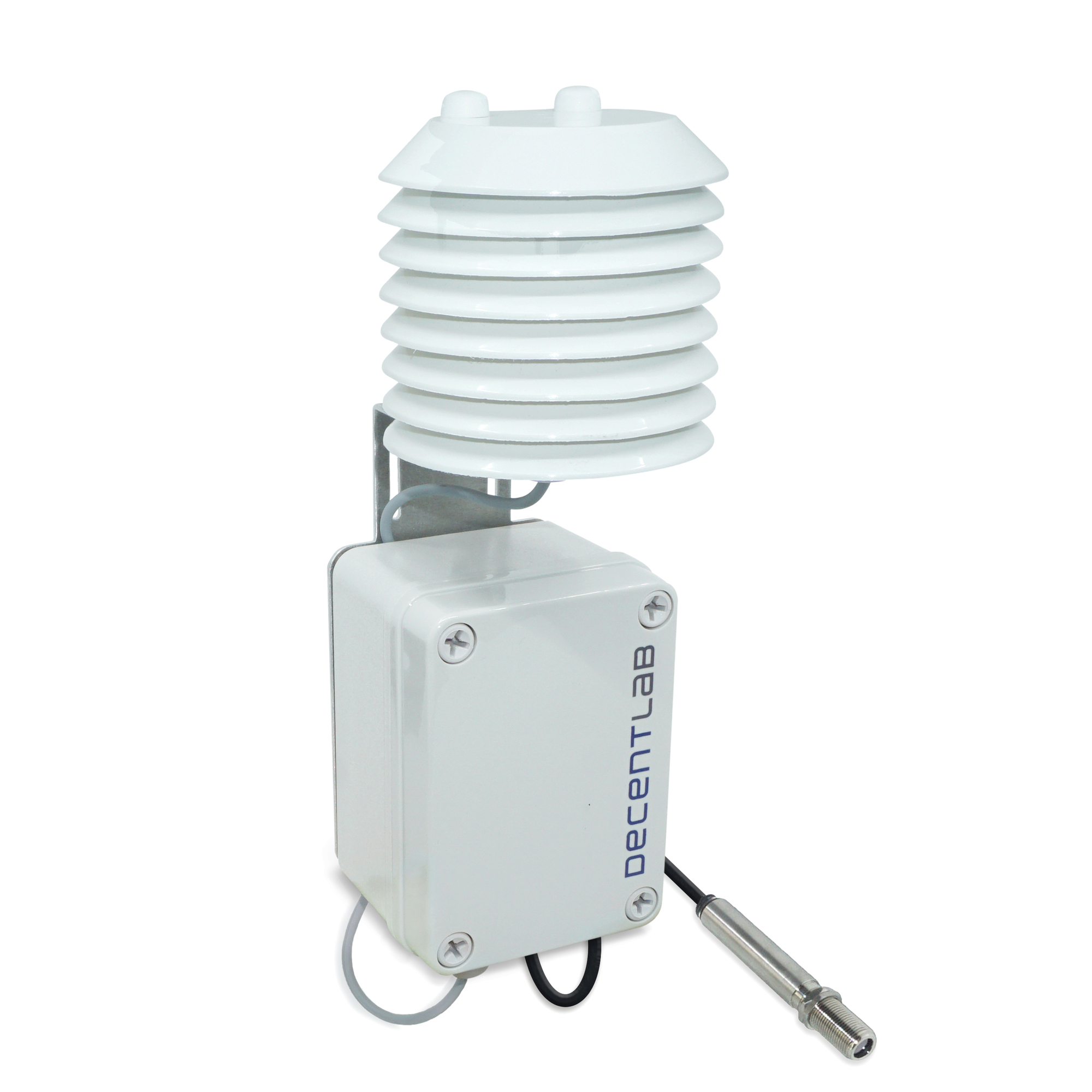

Winter Road Maintenance Sensor for LoRaWAN.
Resources
Specifications
LoRaWAN device type:
- Class A end-device
Sensors:
- surface temperature
- air temperature
- sensor head temperature
- humidity
- battery
Dimensions:
Device including radiation shield:
- width: 105 mm
- length: 280 mm
- height: 85 mm
Surface temperature sensor head:
- diameter: 12 mm
- length: 87 mm
- length thread: 26 mm (M12 x 1)
Weight:
- 645 grams (including batteries, radiation shield, surface temperature sensor and cable)
Battery:
- type: 2x C alkaline (LR14)
- replaceable: True
