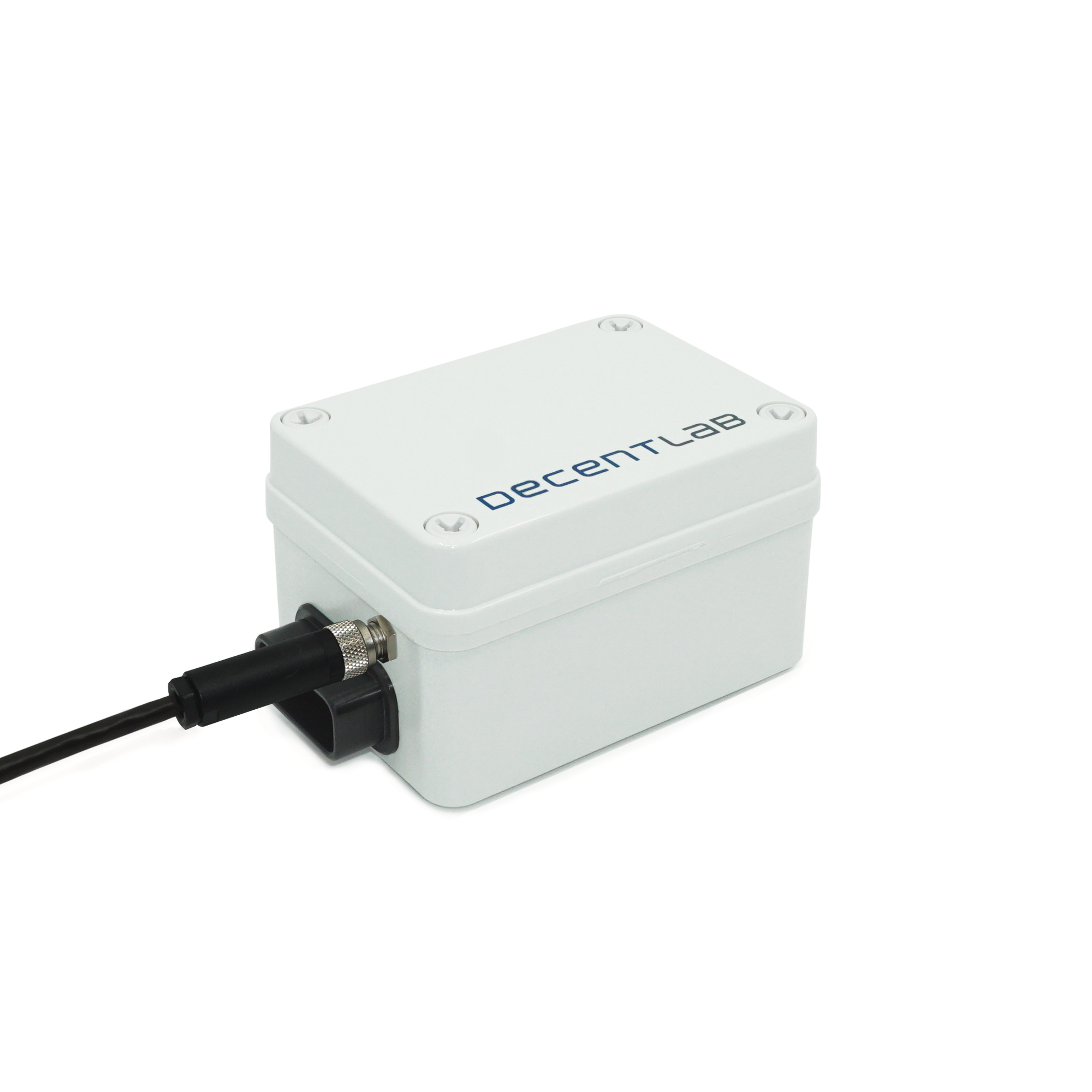

DL-PM

DL-PM​

Particulate Matter, Temperature, Humidity and Barometric Pressure Sensor for LoRaWAN.

Resources​

Specifications​

LoRaWAN device type:​

  • Class A end-device

Sensors:​

  • Particulate Matter (PM)
  • temperature
  • humidity
  • barometer
  • battery

Dimensions:​

  • width: 81 mm
  • length: 122 mm
  • height: 67 mm

Weight:​

  • 400 grams (including batteries)

Battery:​

  • type: 2x C alkaline (LR14)
  • replaceable: True

Note:​

  • The device requires both an external power supply and batteries.
  • External power supply: for the PM sensor exclusively.
  • If the external power supply is not connected, the device operates normally, but omitting PM sensor data.

Content generated from LoRaWAN-devices
