MCF-LW13MIO

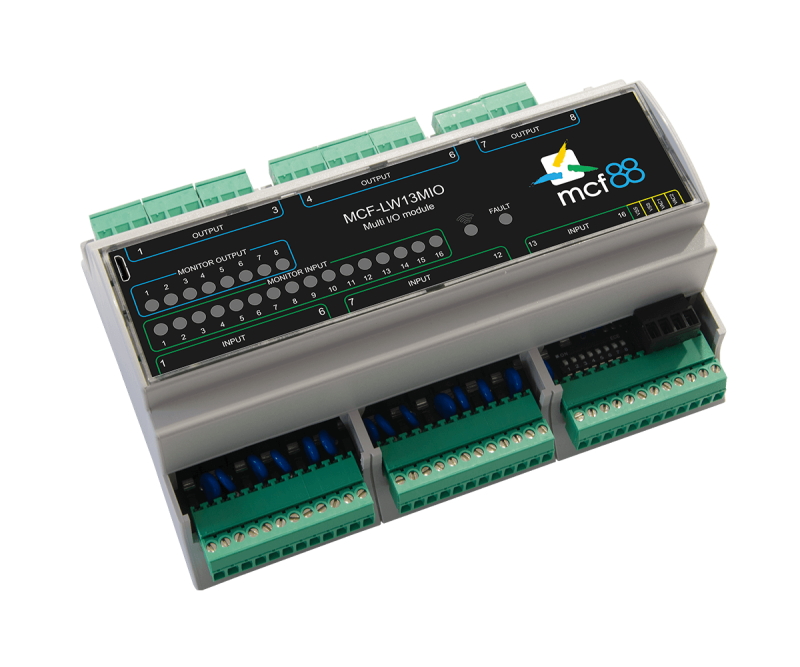

enginko MCF-LW13MIO LoRaWAN Multi I/O Module​

MCF-LW13MIO LoRaWAN Multi I/O Module

The MCF-LW13MIO LoRaWAN Multi I/O Module is a device that transmits the state of its 16 inputs (5-28 V AC/DC) and controls 8 outputs (up to 5A - 230 V AC) through the LoRaWAN network. All these inputs and outputs are galvanically isolated. It can be used for industrial process control, home automation, water treatment, agriculture irrigation and similar applications.

Resources​

Specifications​

LoRaWAN device type:​

  • Class C end-device

Sensors:​

  • 16 digital inputs
  • 8 digital outputs
  • up to 16 counter

Dimensions:​

  • width: 110 mm
  • length: 160.2 mm
  • height: 62 mm

Note:​

  • The installation has to be done by a qualified electrician.
  • The device is intended as a subassembly (component).
  • The MCF-LW13MIO must be mounted in a vertical position.
  • USB port for IoT node setup and FW upgrade.
  • DIN (EN 60715) mounting enclosure, 9 modules.
