LGT-92

LGT-92

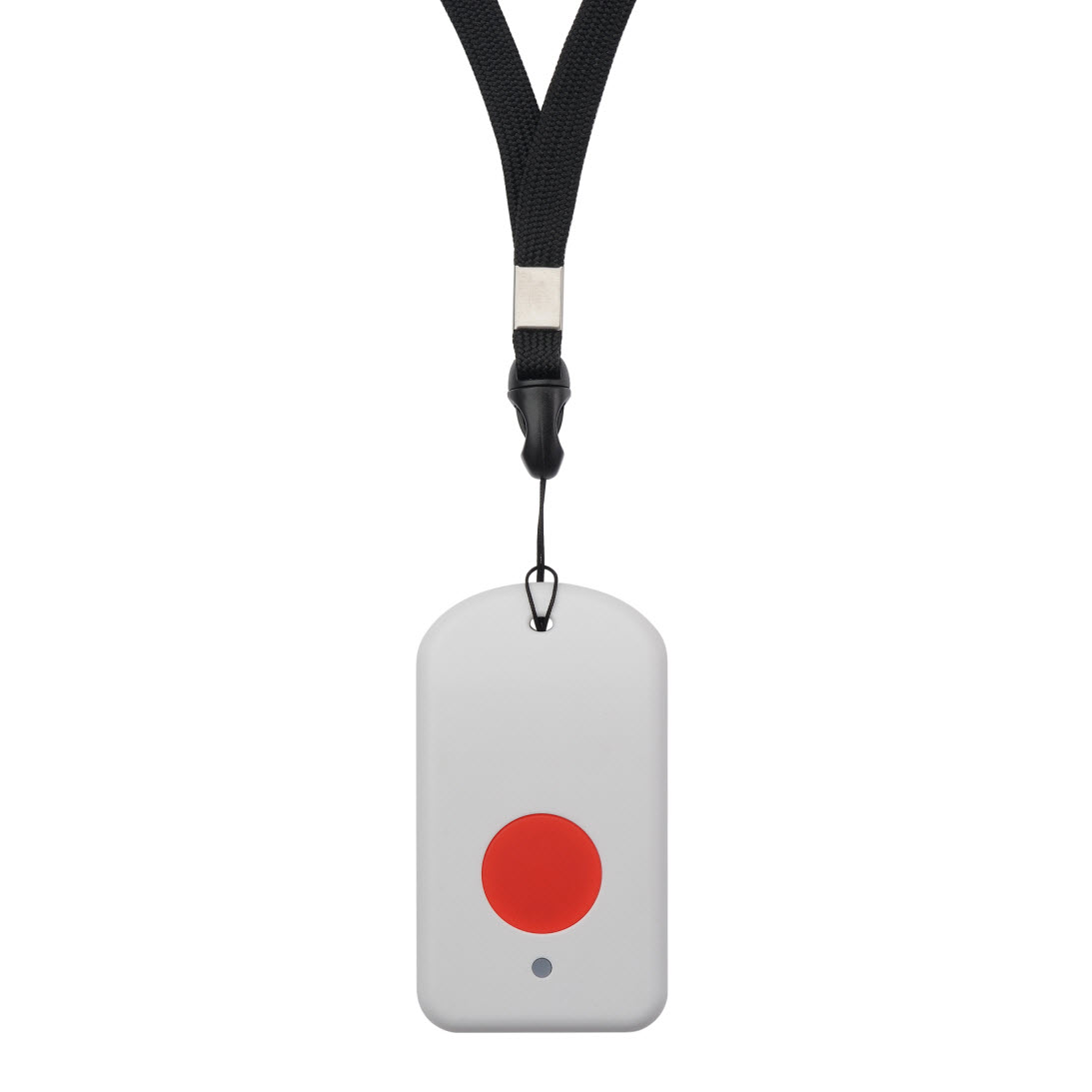

LoRaWAN GPS Tracker with 9-axis accelerometer LGT-92. The Dragino LoRaWAN GPS Tracker LGT-92 is an open-source GPS tracker based on ultra-low power STM32L072 MCU and SX1276/1278 LoRa Module. LGT-92 includes a low-power GPS module L76-L and a 9-axis accelerometer for motion and attitude detection.

Resources

• Product Page
• Datasheet
• Manual
• Configure on Console

Specifications

LoRaWAN device type:

• Class A end-device (default)
• Class C end-device

Sensors:

• accelerometer

Dimensions:

Device:

• width: 48 mm
• length: 85 mm
• height: 15 mm

Weight:

• 50 grams (without USB cable)

Battery:

• type: 1000 mAh Lithium-ion (Li-ion) for model LGT-92-LI
• replaceable: false
• rechargeable: true

Note:

• End of Life (EOL) device.
• Replaced by Dragino TrackerD.

---
