Mkr Windy
MKR WINDY

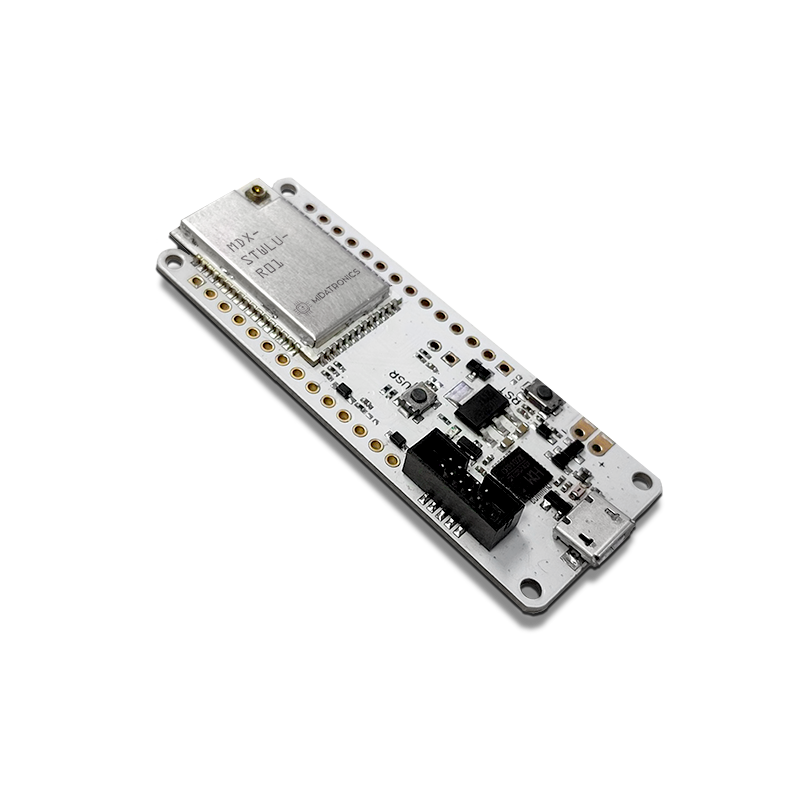

MKR WINDY is an Arduino MKR1000 form factor board based on the Midatronics WINDY Module, an IoT module with onboard uFL connector based on the ST Microelectronics STM32WL, System-On-Chip integrates both a general-purpose microcontroller and a sub-GHz radio on the same chip. Built on an Arm® Cortex®‐M4 core architecture, STM32WL microcontrollers also support multiple modulations – LoRa®, (G)FSK, (G)MSK, BPSK – to ensure flexibility in wireless applications with LoRaWAN®, Sigfox® or any other suitable protocol in a fully open way. The windy module features a sub-GHz radio based-on Semtech SX126x to meet the requirements of a wide range of Low-Power Wide Area Network (LPWAN) wireless applications in industrial and consumer Internet-of-Things (IoT).
Resources
Specifications
Content generated from LoRaWAN-devices
